| Mixer type: | Ribbon | Material processed: | Plastics, Chemicals, Food |
|---|---|---|---|
| Weight: | 600 kg | Material: | SUS304, SUS304L, SUS316, SUS316L, SUS304/316 |
| Voltage: | 220-480V | Power: | 4 kW |
| Capacity: | 300L, 180~2400kg/shift | Motor power: | 4-22kw |
| Speed: | 33-65rpm | Model dimensions: | L1:1915mm, W2:850mm, H1:1000mm, H2:50mm |
| Max loading: | 180 kg | Machine weight: | 600 kg |
| Total power: | 4 KW | Blade type: | Double or triple layers |
| Structural design: | U-shaped container with spiral belt stirring blades | ||
| Làm nổi bật: | industrial ribbon blender 300L,powder mixing machine with warranty,ribbon blender for industrial use |
||
| Attribute | Value |
|---|---|
| Mixer Type | Ribbon |
| Material Processed | Plastics, Chemicals, Food |
| Weight | 600 kg |
| Construction Material | SUS304, SUS304L, SUS316, SUS316L, SUS304/316 |
| Power | 4 kW (220-480V) |
| Capacity | 300L, 180~2400kg/shift |
| Motor | 4-22kW |
| Speed | 33-65rpm |
| Warranty | 1 year |
| Certifications | CE, ISO, SGS, BV |

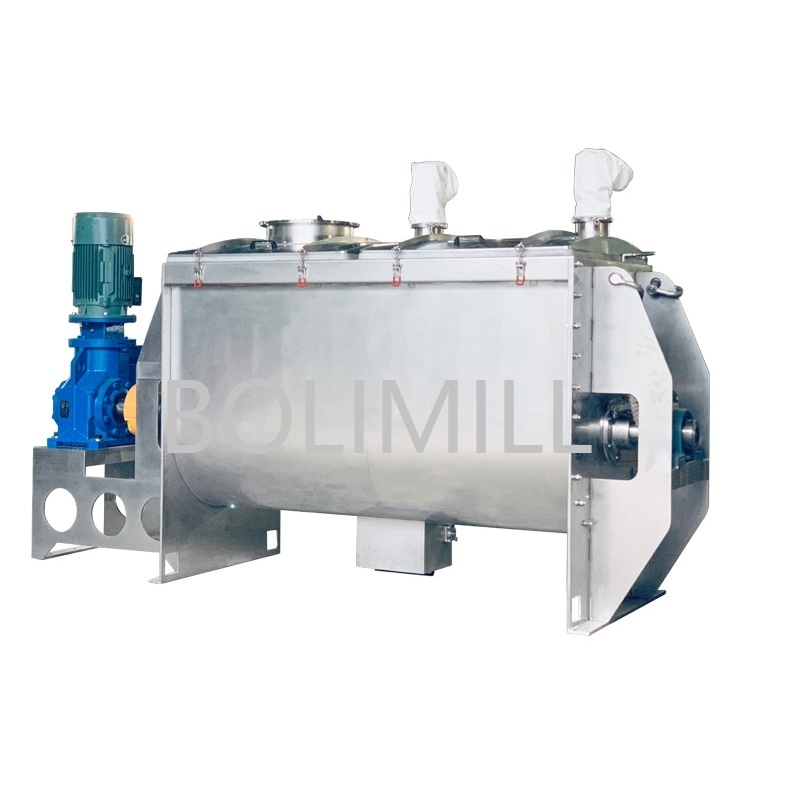

This industrial ribbon blender is designed for efficient mixing of powders, semi-fluids, and low-viscosity pastes in food, chemical, and agricultural applications. The machine features a U-shaped container with spiral mixing blades for optimal material flow.

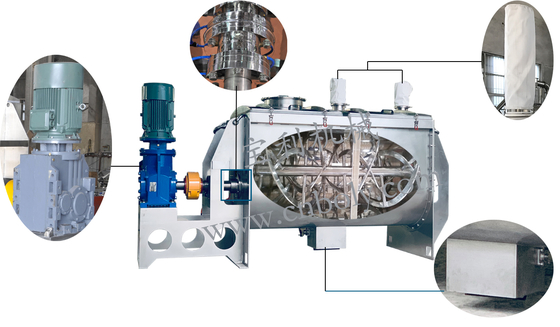

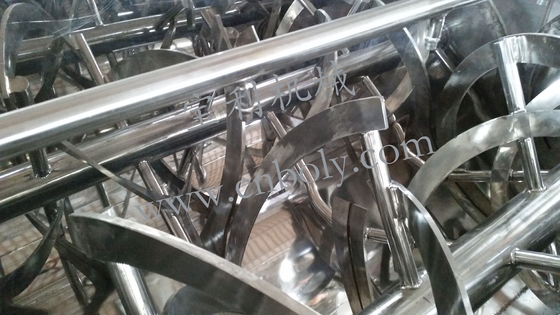

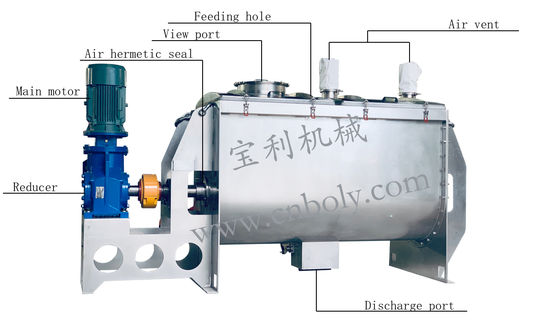

The ribbon mixer operates through a U-shaped container with specially designed screw belt stirring blades. The outer spiral collects materials from both sides to the center while the inner spiral conveys materials from the center to both sides, creating continuous mixing action with minimal power consumption.
| Model | L1 (mm) | W2 (mm) | H1 (mm) | H2 (mm) | Volume (L) | Max Loading (kg) | Speed (RPM) | Weight (kg) | Power (kW) |
|---|---|---|---|---|---|---|---|---|---|
| JB-300 | 1915 | 850 | 1000 | 50 | 300 | 180 | 65 | 600 | 4 |
| JB-500 | 2510 | 1000 | 1275 | 50 | 500 | 300 | 65 | 900 | 7.5 |
| JB-1000 | 2980 | 1120 | 1380 | 50 | 1000 | 600 | 48 | 1300 | 11 |
| JB-1500 | 3160 | 1420 | 1570 | 50 | 1500 | 900 | 48 | 1600 | 15 |
| JB-2000 | 3360 | 1450 | 1625 | 50 | 2000 | 1200 | 35 | 2000 | 15 |
Jiangyin Baoli Machinery Manufacturing Co., Ltd is a manufacturing-oriented enterprise founded in 2004, specializing in crushing, mixing, conveying, sifting, and drying equipment for global customers.
